Description

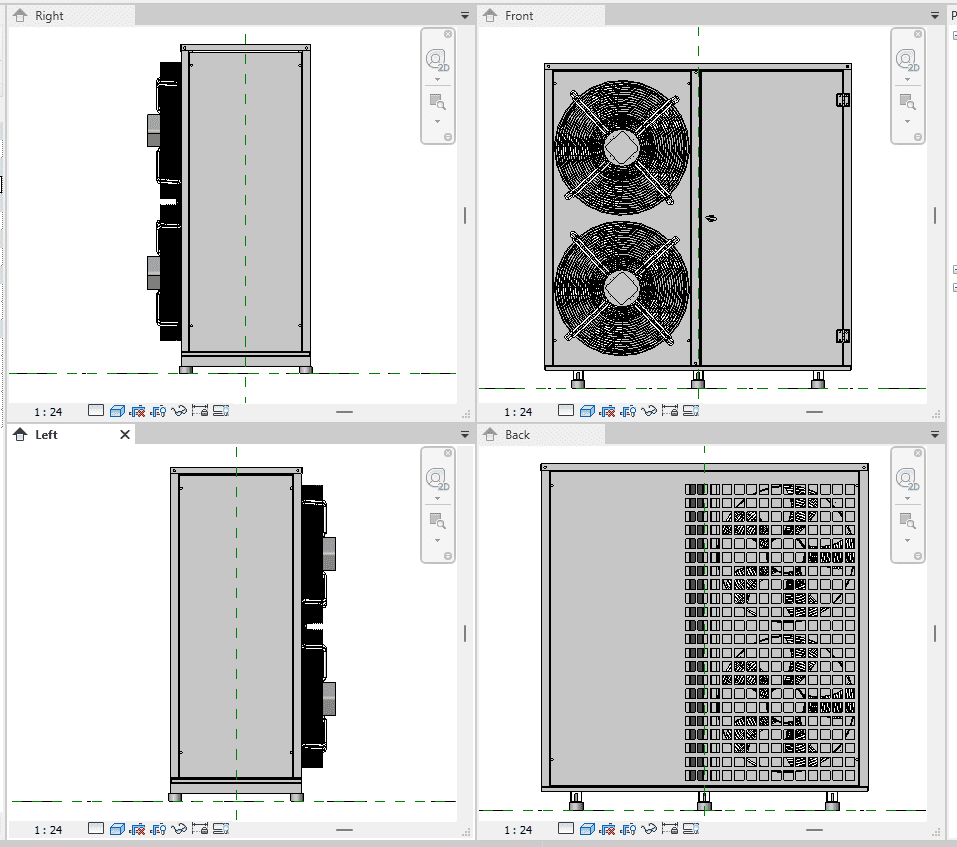

This Cooling Cabinet Split Unit – Double Fan Revit Family is a highly detailed and performance-optimized BIM object designed for mechanical, HVAC, and building services projects. The model features a rectangular outdoor cooling cabinet equipped with two axial condenser fans, a side ventilation grille, structural frame, and access service panels.

Engineered with clean geometry for efficient project performance, this family provides high visual accuracy in 3D, plan, section, and elevation views. Its configuration makes it ideal for commercial buildings, data centers, industrial facilities, supermarkets, and large HVAC installations requiring outdoor condenser units.

The Revit family supports LOD 200–300, includes proper reference planes, origin control, and realistic material assignments for documentation and rendering. Fully compatible with Revit 2019 and newer, this model fits seamlessly into mechanical system layouts and exterior equipment yards in BIM-based design workflows.
