Description

It is compatible with Revit 2020 to 2026

Create multiple Revit sheets from Excel using Dynamo.
Import Sheet Number and Sheet Name from a simple Excel file and generate all sheets automatically with your chosen Title Block (and optional View).

Excel template (required)

• Sheet name: Sheet1

• Column A: Sheet Number (e.g., A01, A02, A03 …)

• Column B: Sheet Name (e.g., sheet1, sheet2, sheet3 …)

• No header row is required. Keep columns clean (no merged cells, no empty rows in the middle).

(Your screenshot matches this exactly.)

How it works (Dynamo steps)

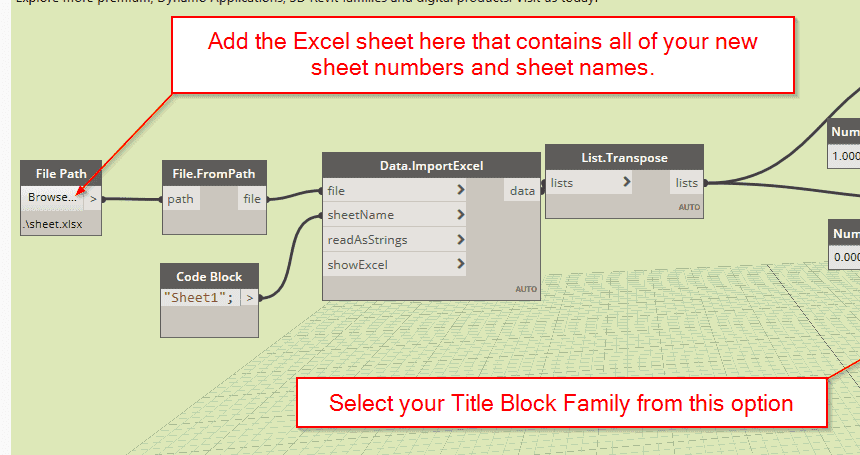

1. File Path → File.FromPath → Data.ImportExcel

   • sheetName = "Sheet1"

   • readAsStrings = true (recommended)

   • showExcel = false/empty

2. List.Transpose the imported data so each column becomes a list.

3. Get columns:

   • List.GetItemAtIndex (index 0) → Sheet Numbers

   • List.GetItemAtIndex (index 1) → Sheet Names

4. Pick Family Types → your Title Block.

5. (Optional) Pick a View from Views node to place on each sheet.

6. Feed everything into Sheet.ByNameNumberTitleBlockAndView.

What you get

• Creates all sheets listed in Excel.

• Applies the selected Title Block.

• Optionally places the chosen View on each new sheet.

Notes & troubleshooting

• Duplicates: If a Sheet Number already exists, Revit will skip it or throw an error—fix the number in Excel and re-run.

• Blank rows: Remove blank/end rows to avoid null items.

• Title Block: Ensure the family type exists in the project.

• View: If you pass a view, make sure it isn’t already placed on another sheet.

• Which Revit version does this script work with?
  It is compatible with Revit 2020 to 2026
