Description

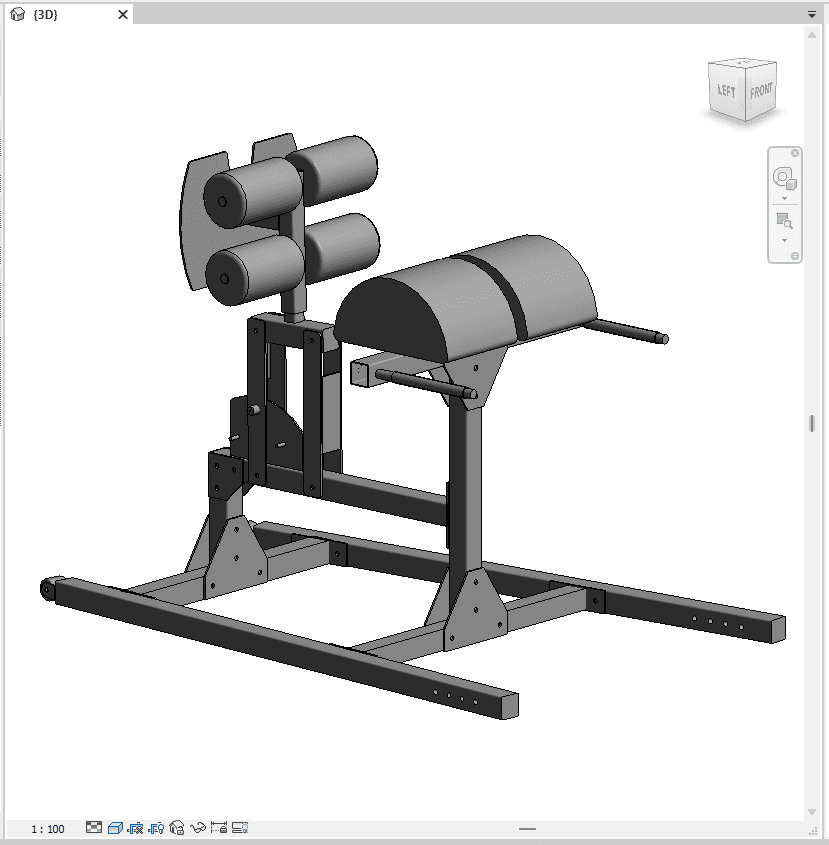

This Hyperextension Bench Revit Family is a professionally modeled BIM object designed for strength-training room layouts, gym planning, and architectural visualization. The model represents an adjustable back-extension machine commonly found in commercial gyms, sports facilities, rehabilitation centers, and fitness studios.

(it’s not Parametric Family)

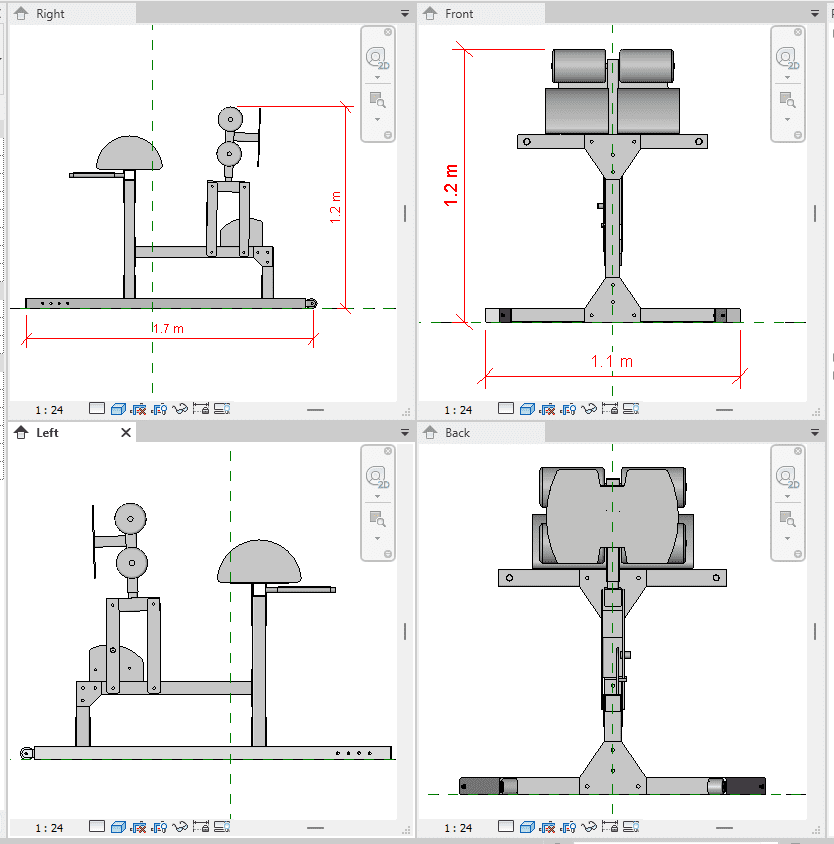

The Revit family includes accurate geometry such as:

• Adjustable upper hip pad assembly

• Multi-position rear support rollers

• Steel frame base with reinforcement brackets

• Handle bars for stability

• Foot support extensions with multiple adjustment holes

• Realistic proportions and training-equipment detailing

This BIM object is optimized for efficient performance while maintaining LOD 200–300 detail suitable for construction documentation, 3D renderings, and coordination modeling. Its lightweight geometry ensures smooth placement within large architectural projects and gym layouts.

Perfect for:

• Commercial gym architecture

• Sports & wellness center BIM design

• Residential fitness room planning

• Interior visualization and spatial planning

• Clash detection and coordinated design workflows

Built with Revit best-practice modeling standards, this hyperextension bench is reliable, clean, and ready for use in any professional BIM environment.
