ATM Machine Revit Family – Freestanding Bank ATM (RFA)
$4.00
A highly detailed, fully parametric freestanding ATM Revit family for banks, shopping malls, airports and office lobbies. Clean native geometry, simple Width / Depth / Height parameters, and a realistic front interface that looks professional in 3D, plan and elevation.
Description
Bring realistic self-service banking equipment into your BIM projects with this premium freestanding ATM Machine Revit family. Built entirely with native Revit geometry, it is detailed enough for presentation renders and clean enough for everyday design and documentation work.
Key features:
- Fully parametric with only three parameters: Width, Depth and Height

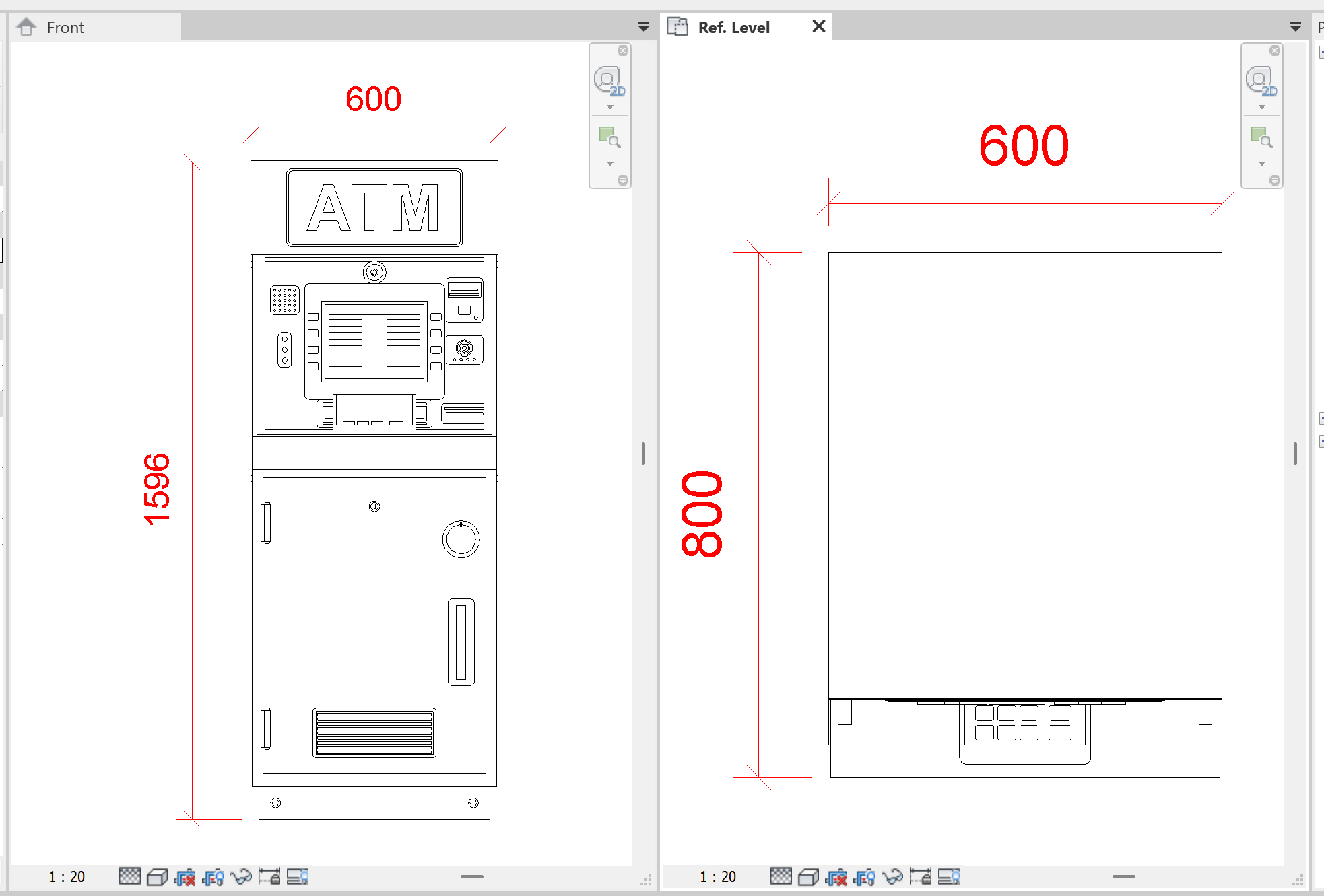

- Default size: 600 mm wide x 800 mm deep x 1600 mm high
- Flexes cleanly when each dimension is changed, with no broken constraints or warnings

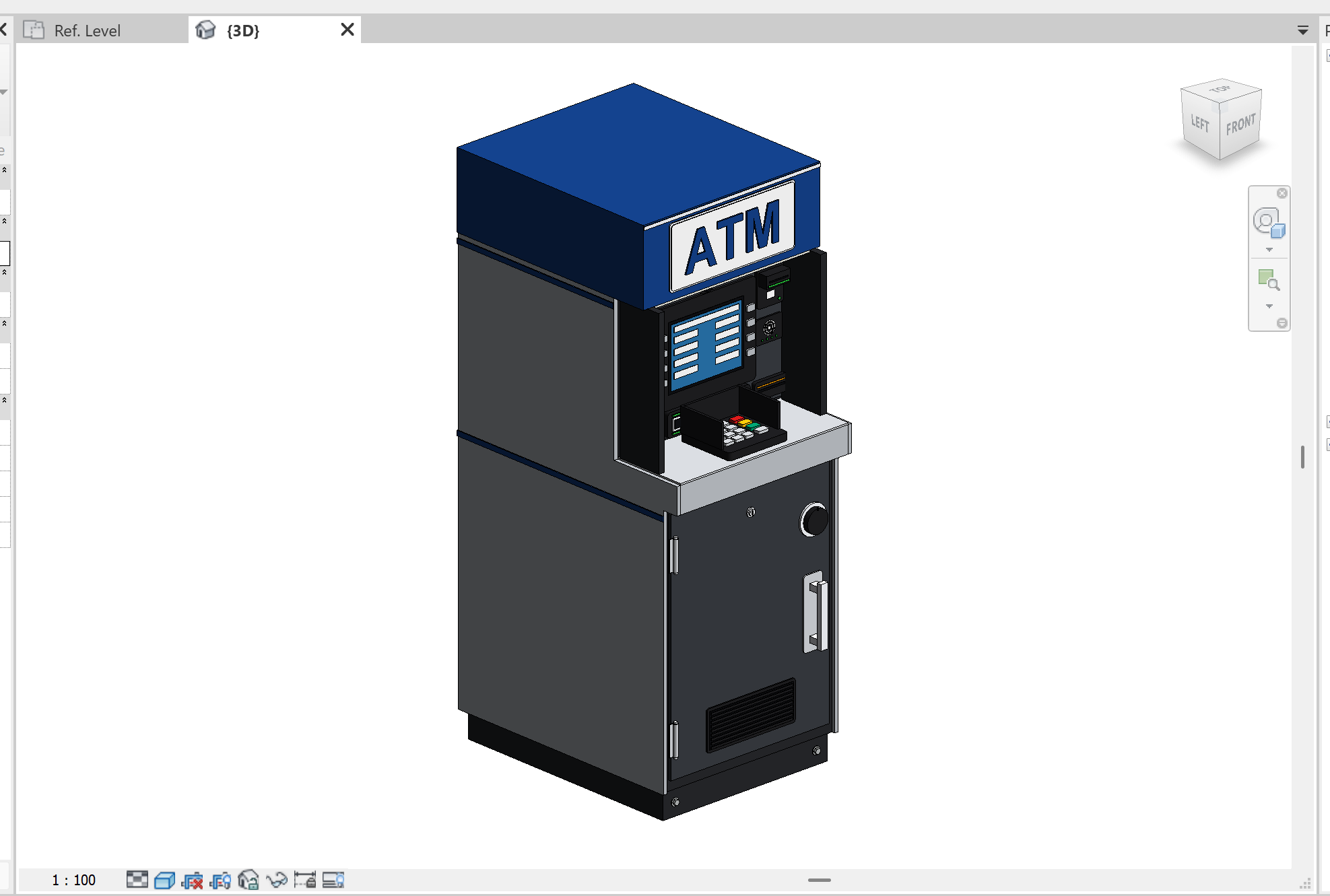

- Detailed front interface: large display screen with function keys, card reader with lit card slot, PIN keypad with privacy shield, cash dispensing slot, receipt slot, contactless/NFC reader, security camera, speaker grille and indicator lights
- Illuminated blue header with a 3D “ATM” sign and an under-canopy light panel
- Privacy side wings, stainless steel counter shelf and rubber bumper
- Lower safe cabinet with door, handle, combination dial, hinges, lock and ventilation grille
- Side panels with accent stripes, plinth with fixing bolts, rear service door and vents
- Realistic embedded materials: painted metal, stainless steel, chrome, dark plastic, rubber and display glass
- No imported CAD, no external links and no unnecessary parameters
- Category: Specialty Equipment, compatible with Revit 2020 and newer
Ideal for:
Bank branches, shopping malls, airports, hotels, office lobbies, retail interiors and public facilities.
What you get:
- ATM Machine.rfa (Revit 2020)
- Preview images
