Generators and Substation Revit Collection – 6 Families in One RVT (Diesel Generators, LV-MDB, MV Switchgear)
$29.00
A complete collection of 6 highly detailed, parametric electrical Revit families: four diesel generator sets (100, 250, 500 and 1000 kVA), an LV Main Distribution Board and an MV Switchgear. Delivered as one Revit project file (.RVT) with all 6 RFA families loaded inside, placed side by side and ready to use or extract.
Description
Equip your power and substation designs with this premium Generators and Substation Revit Collection. You get 6 separate, editable Revit families in a single organized project file, built entirely with native Revit geometry for clean documentation and realistic 3D views.

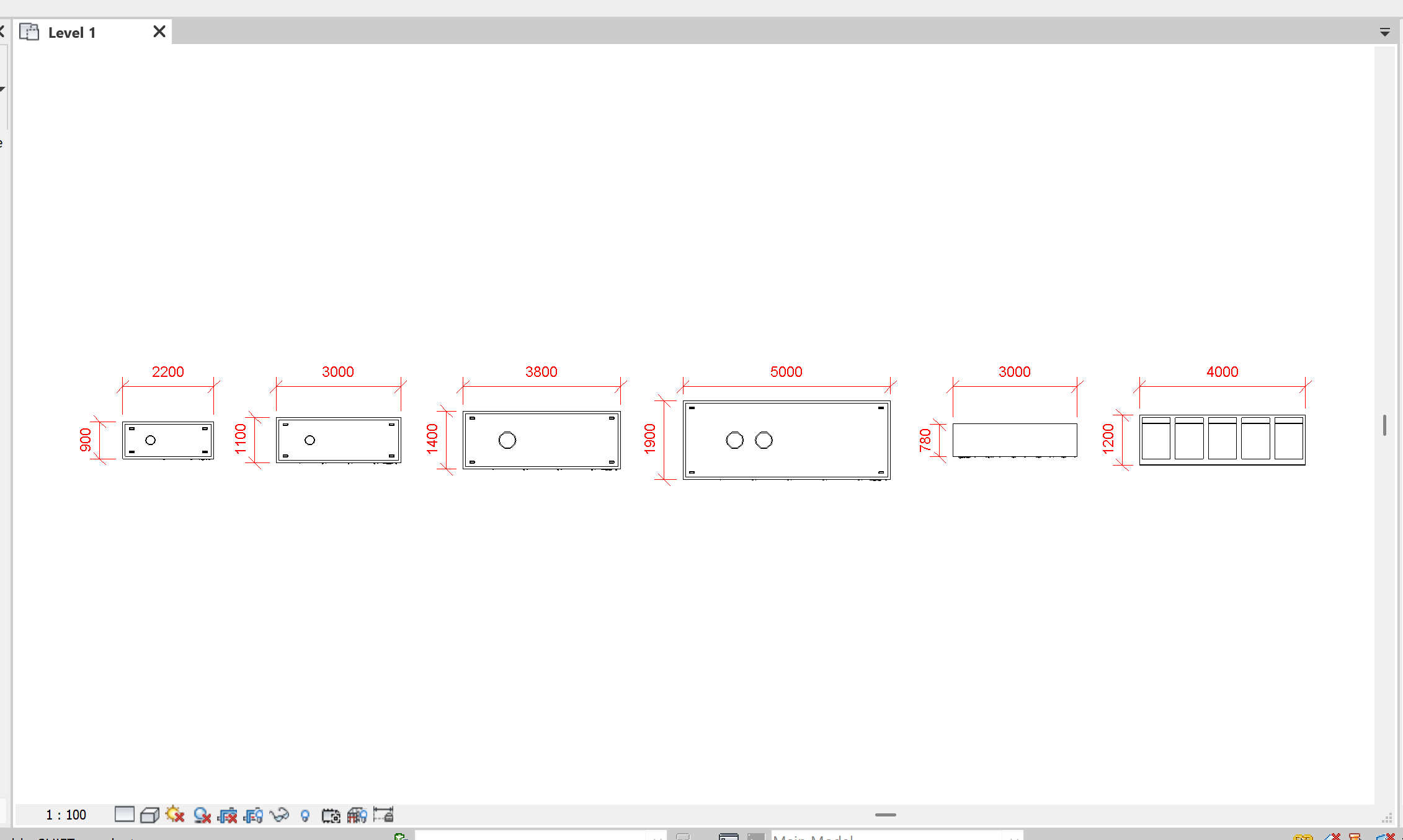

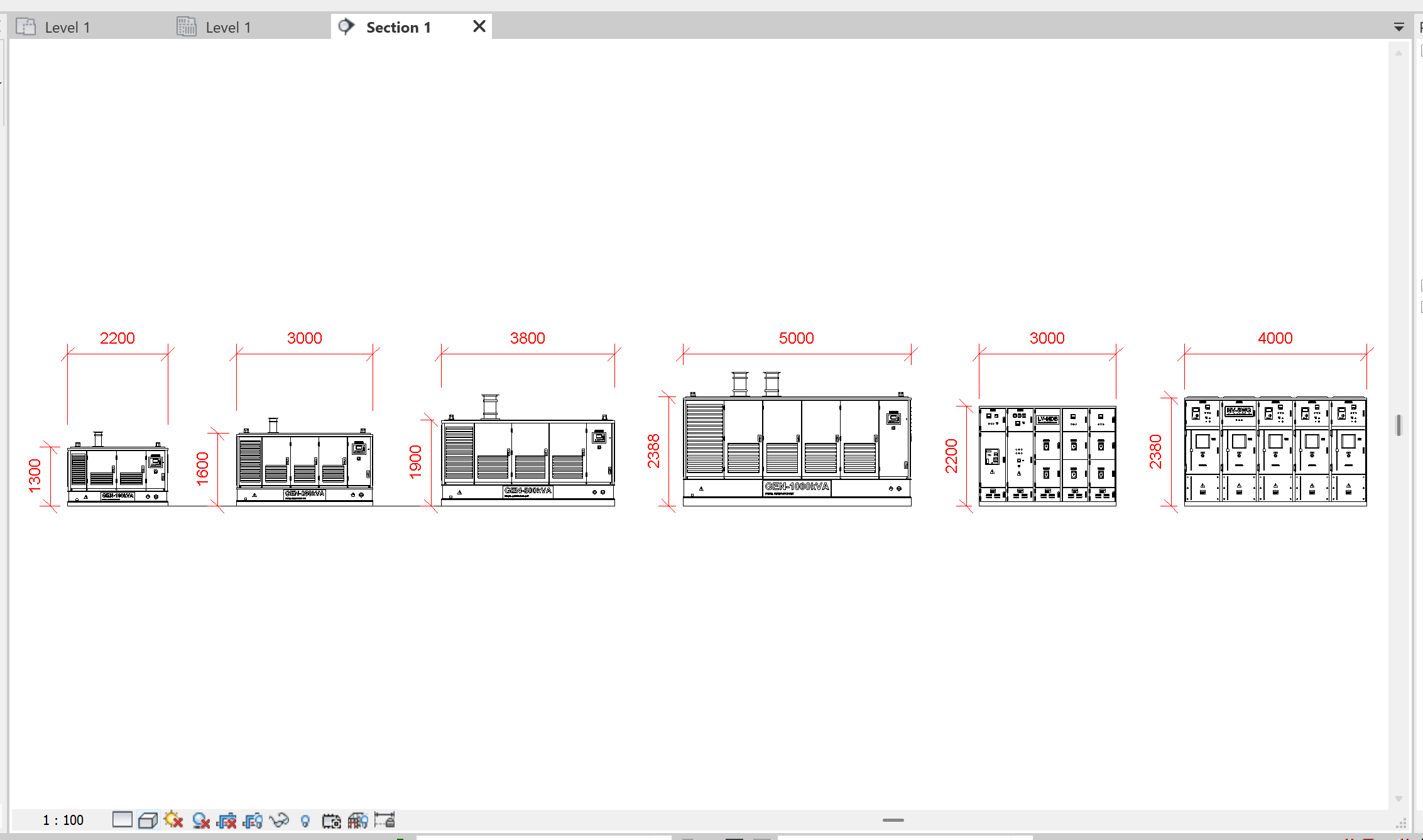

Included models (6):

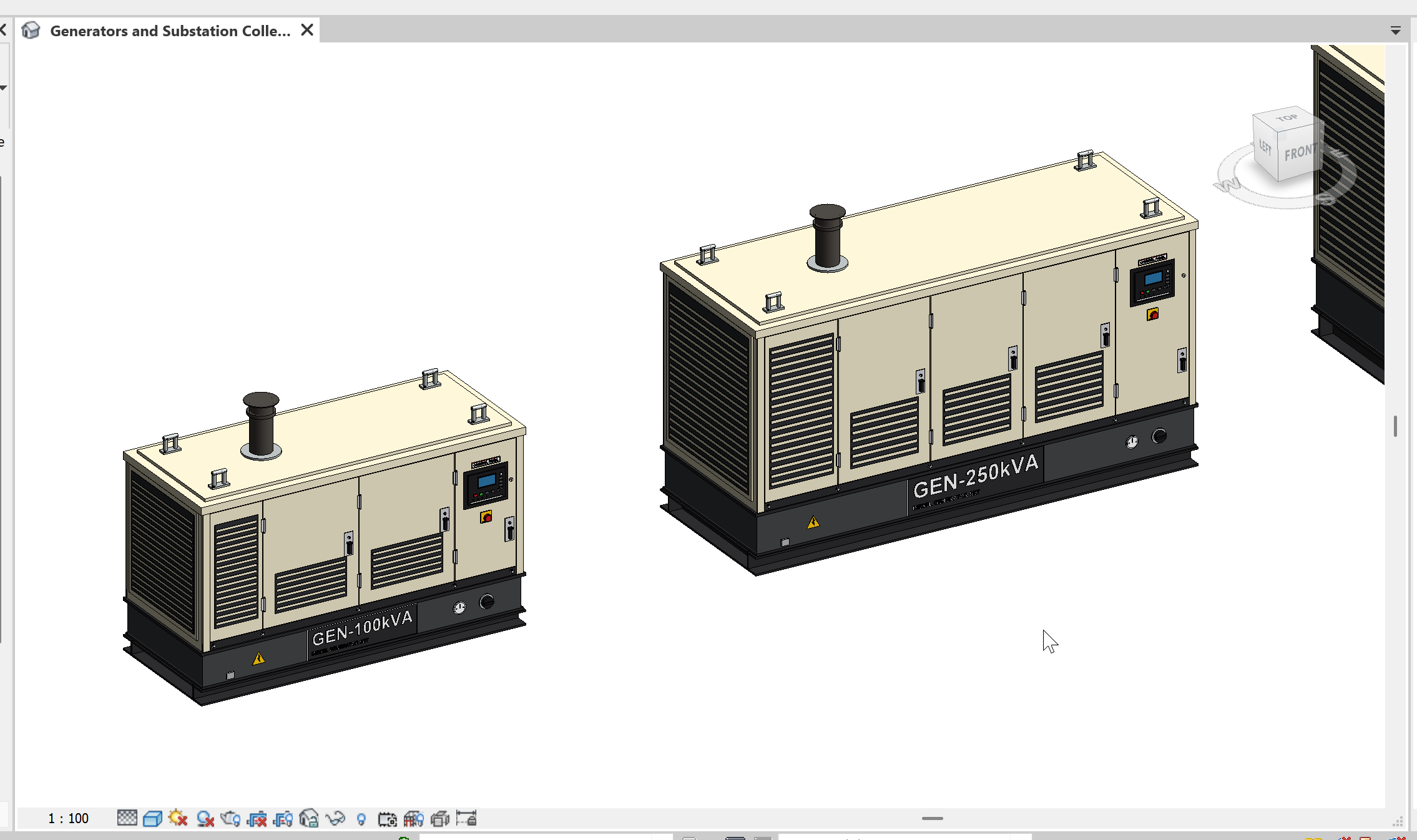

- GEN-100kVA – Commercial Diesel Generator (2200 x 900 x 1300 mm)
- GEN-250kVA – Commercial Diesel Generator (3000 x 1100 x 1600 mm)

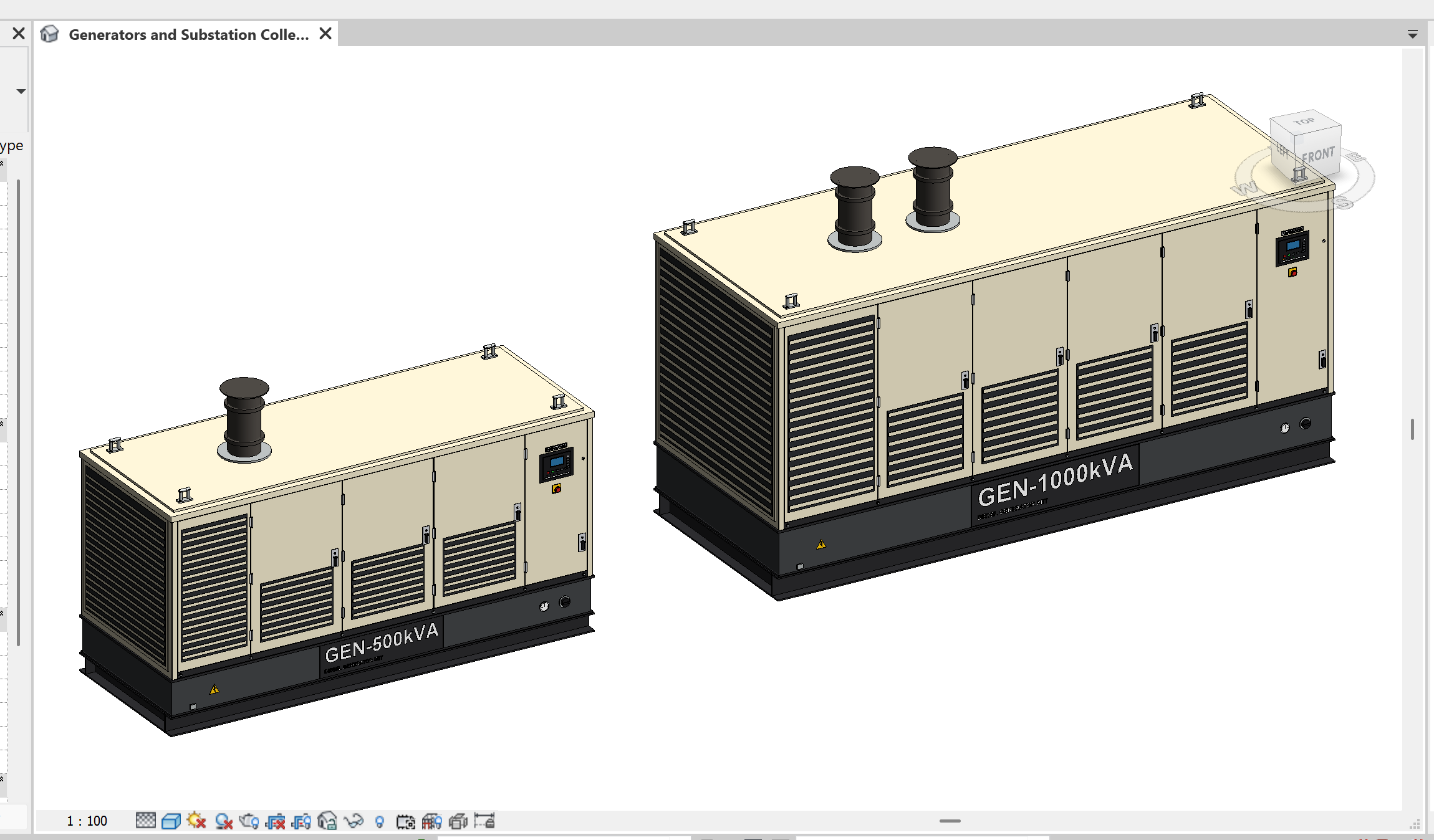

- GEN-500kVA – Commercial Diesel Generator (3800 x 1400 x 1900 mm)
- GEN-1000kVA – Commercial Diesel Generator (5000 x 1900 x 2400 mm)

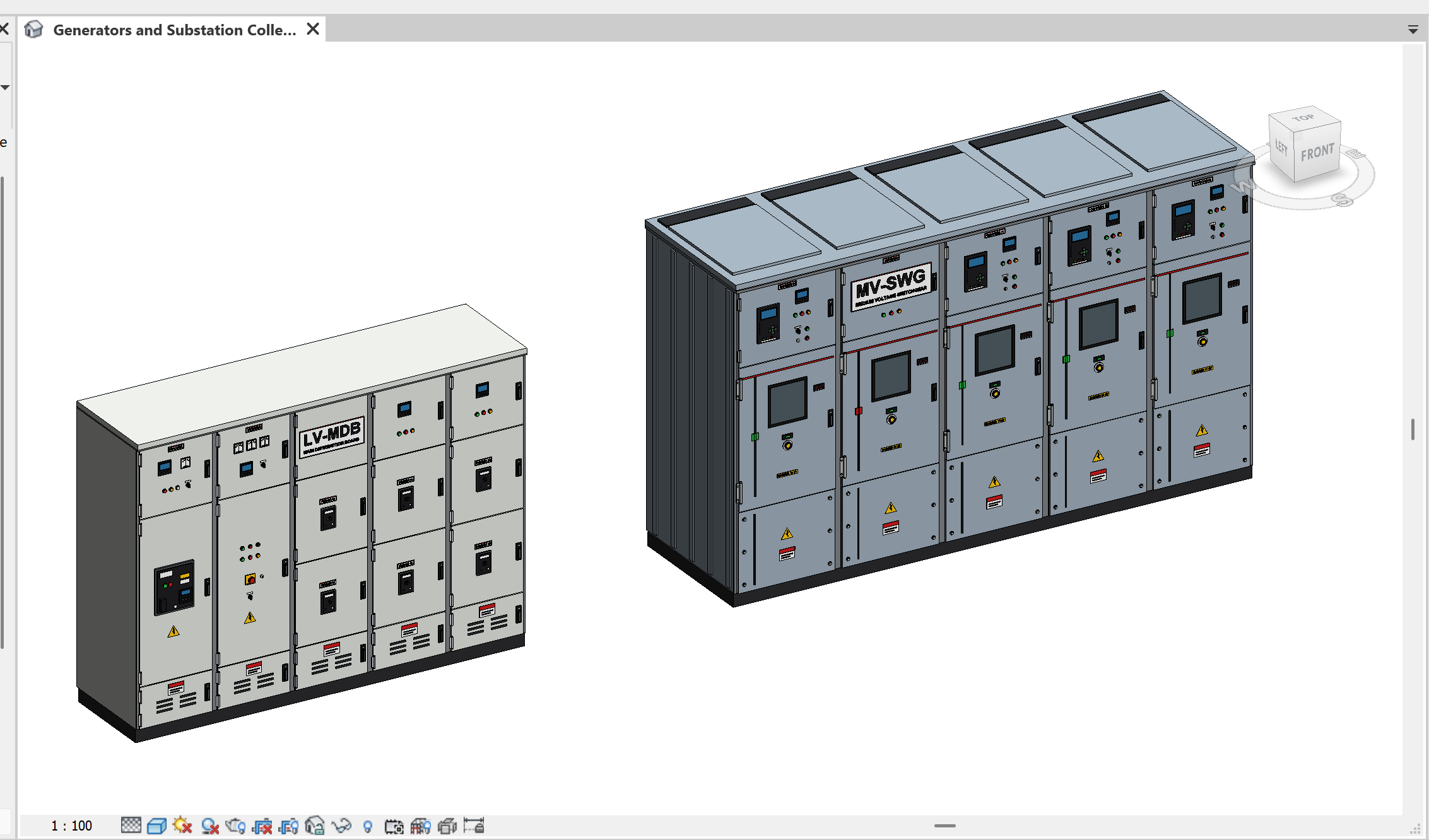

- LV-MDB – Substation Main Distribution Panel (3000 x 800 x 2200 mm)
- MV-SWG – Substation Medium Voltage Switchgear (4000 x 1200 x 2400 mm)
File format (important):
- The download is ONE Revit project file (.RVT): Generators and Substation Collection.rvt
- All 6 families are loaded inside it as separate RFA families, placed side by side with a ready 3D overview view
- Each family stays independently selectable and editable, and can be exported to its own .RFA file in seconds (right-click the family in the Project Browser > Save, or File > Save As > Library > Family)
Key features:
- Simple parametric control: Width, Depth and Height on every family (generators also show their Power Rating in kVA)
- Flex cleanly when dimensions change, with no broken constraints
- Generators: acoustic enclosure with access doors, hinges and handles, ventilation louvers, exhaust outlet, lifting eyes, fuel cap and gauge, controller panel with display, emergency stop and indicator lights, base frame and nameplate
- LV-MDB: multi-section panel with plinth, incomer ACB, metering section, feeder MCCBs, meters, indicator lights, push buttons, selector switches, warning labels and section tags
- MV-SWG: medium voltage switchgear sections with protection relays, meters, inspection windows, operating sockets, voltage indicators, mimic lines, heavy hinges and danger labels
- Realistic embedded materials: painted panels, galvanized steel, stainless steel, chrome, dark plastic, rubber, display glass and indicator lenses
- No imported CAD, no external links and no unnecessary parameters
- Category: Electrical Equipment, compatible with Revit 2020 and newer
Ideal for:
Commercial and industrial buildings, hospitals, data centers, substations, plant rooms, infrastructure and MEP coordination models.
