GEN-250kVA Commercial Diesel Generator Revit Family – 250 kVA Genset (RFA)
$4.00
A highly detailed, parametric 250 kVA standby diesel generator Revit family for commercial buildings, hotels, clinics, schools and mid-size residential towers. Acoustic enclosure with service doors, radiator grille, controller panel, emergency stop, exhaust outlet and lifting eyes, with simple Width / Depth / Height parameters.
Description
Plan standby power for mid-size buildings with this premium GEN-250kVA Commercial Generator Revit family. It is built entirely from native Revit geometry, so it looks realistic in 3D and renders while staying clean and readable in plans and elevations.
Key features:
- Simple parametric control: Width, Depth and Height, plus a Power Rating (kVA) value set to 250

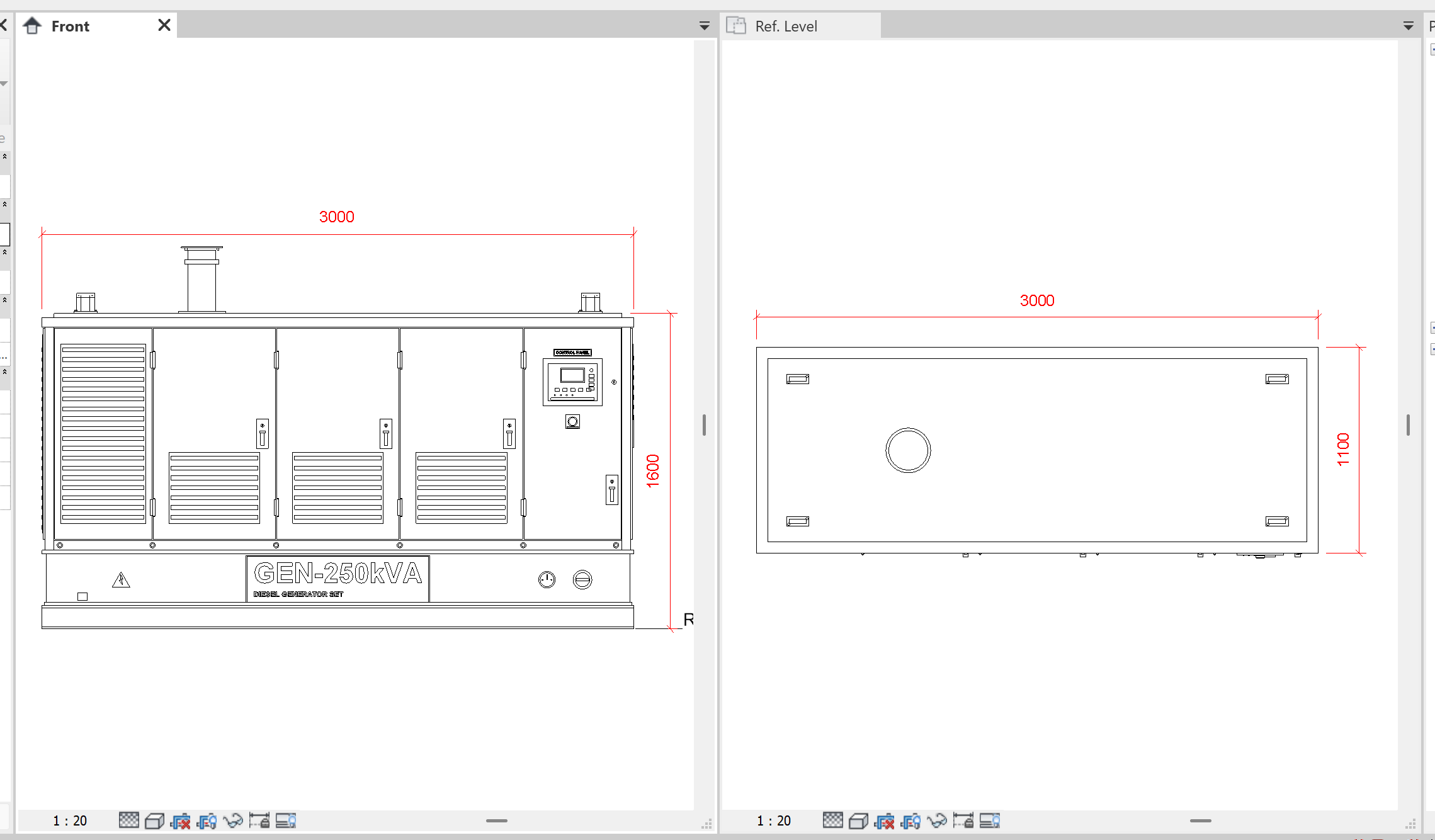

- Default size: 3000 mm long x 1100 mm deep x 1600 mm high
- Flexes cleanly when dimensions change, with no formulas and no broken constraints
- Acoustic enclosure with louvred engine access doors, hinges and handles
- Full radiator grille on the end face
- Alternator access door
- Control panel with genset controller, display, indicator lights and emergency stop
- Roof exhaust outlet, plus lifting eyes for crane handling
- Fuel tank base with fuel cap and fuel level gauge
- Heavy-duty steel base frame
- “GEN-250kVA” identification nameplate on the fuel tank base
- Realistic embedded materials: painted steel enclosure, galvanized steel, stainless steel, chrome, dark grilles, plastic and rubber controls and indicator lenses
- No imported CAD, no external links and no unnecessary parameters
- Category: Electrical Equipment, compatible with Revit 2020 and newer
Ideal for:
Commercial and office buildings, hotels, clinics, schools, shopping centres, residential towers and MEP plant rooms.
What you get:
- GEN-250kVA – Commercial Generator.rfa (Revit 2020)
