LV-MDB Substation Main Distribution Panel Revit Family – Low Voltage Switchboard (RFA)
$4.00
A highly detailed, parametric low voltage Main Distribution Board (LV-MDB) Revit family for substations, electrical rooms, commercial and industrial buildings. Five-section switchboard lineup with ACB incomer, metering section, six feeder breakers and full front controls, with simple Width / Depth / Height parameters.
Description
Lay out substations and main electrical rooms with this premium LV-MDB Substation Main Distribution Panel Revit family. It is built entirely from native Revit geometry, so it looks realistic in 3D and renders while staying clean and readable in plans and elevations.
Key features:
- Fully parametric with only three parameters: Width, Depth and Height

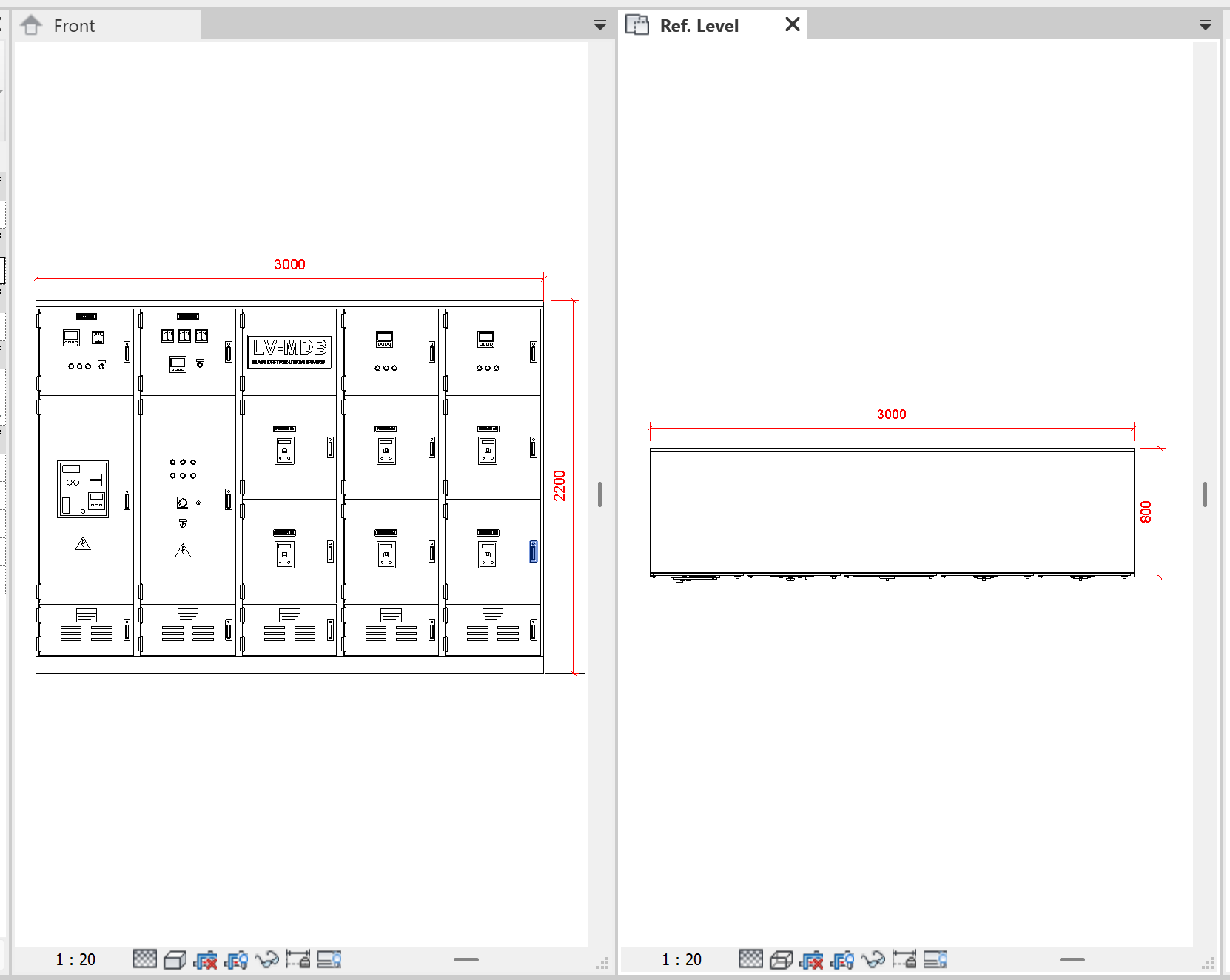

- Default size: 3000 mm wide x 800 mm deep x 2200 mm high
- Flexes cleanly when dimensions change, with no formulas and no broken constraints
- Five-section free-standing switchboard on a steel plinth, with section dividers and top cover
- Incomer section with air circuit breaker (ACB), digital multifunction meter, analog meter and indicator lights
- Metering section with analog meters, digital meter, push buttons, indicator lights, emergency stop, key lock and selector switches
- Six feeder compartments with moulded case circuit breakers (MCCB) and feeder tags
- Hinged compartment doors with panel handles and hinges
- Ventilation slots, danger plates and warning labels
- Section tags (INCOMER, METERING, FEEDER 01 to 06) and “LV-MDB MAIN DISTRIBUTION BOARD” nameplate
- Realistic embedded materials: painted panel steel, galvanized steel, chrome, dark plastic, display glass and indicator lenses
- No imported CAD, no external links and no unnecessary parameters
- Category: Electrical Equipment, compatible with Revit 2020 and newer
Ideal for:
Substations, main electrical rooms, commercial towers, hospitals, data centers, factories, malls and infrastructure projects.
What you get:
- LV-MDB – Substation Main Distribution Panel.rfa (Revit 2020)
