GEN-1000kVA Commercial Diesel Generator Revit Family – 1000 kVA Genset (RFA)
$4.00

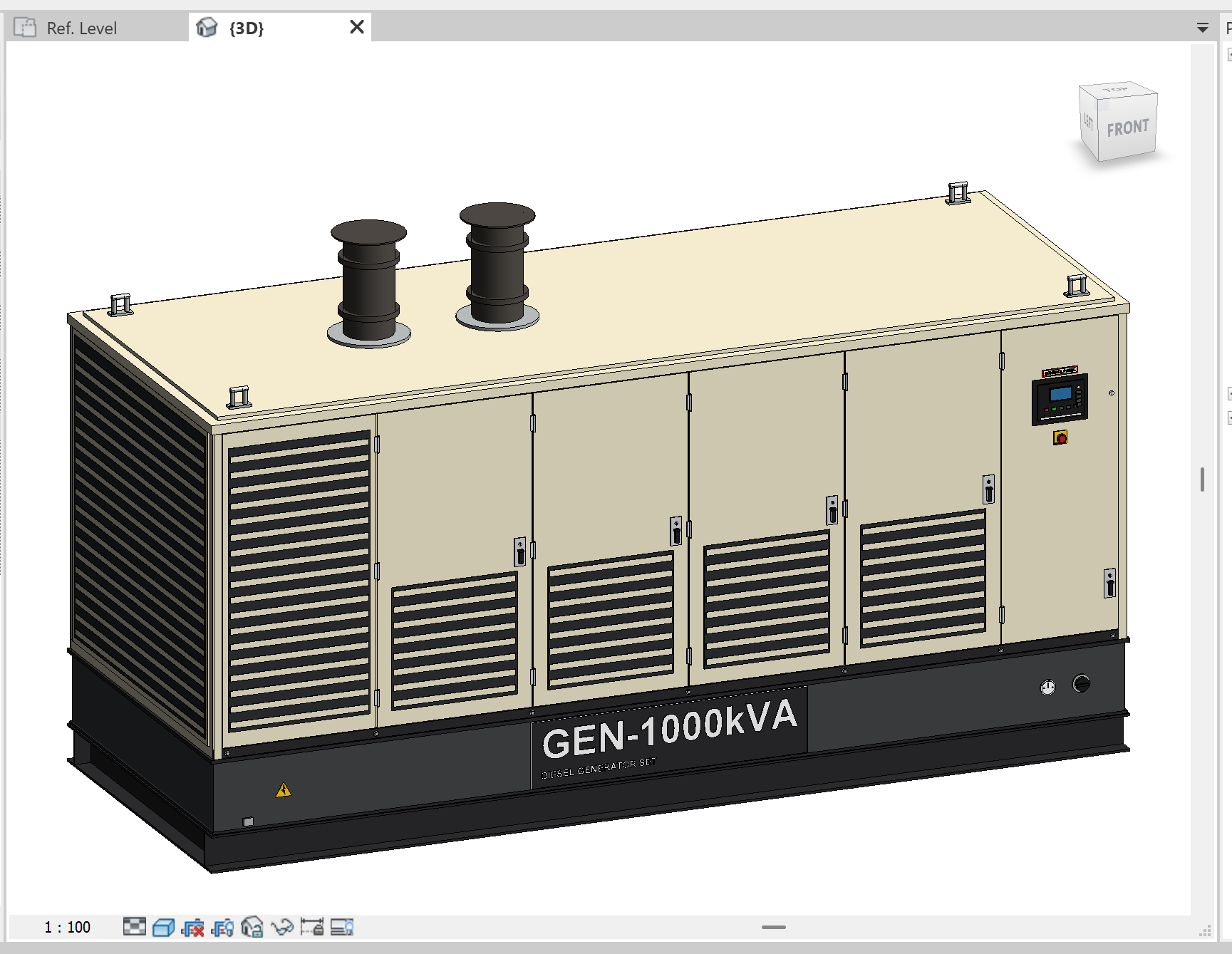

A highly detailed, parametric 1000 kVA prime and standby diesel generator Revit family for hospitals, data centers, high-rise towers, factories and infrastructure projects. Large acoustic enclosure with service doors, radiator grille, controller panel, emergency stop, twin exhaust outlets and lifting eyes, with simple Width / Depth / Height parameters.
Description
Plan large-scale power plant rooms and generator yards with this premium GEN-1000kVA Commercial Generator Revit family. It is built entirely from native Revit geometry, so it looks realistic in 3D and renders while staying clean and readable in plans and elevations.
Key features:
- Simple parametric control: Width, Depth and Height, plus a Power Rating (kVA) value set to 1000

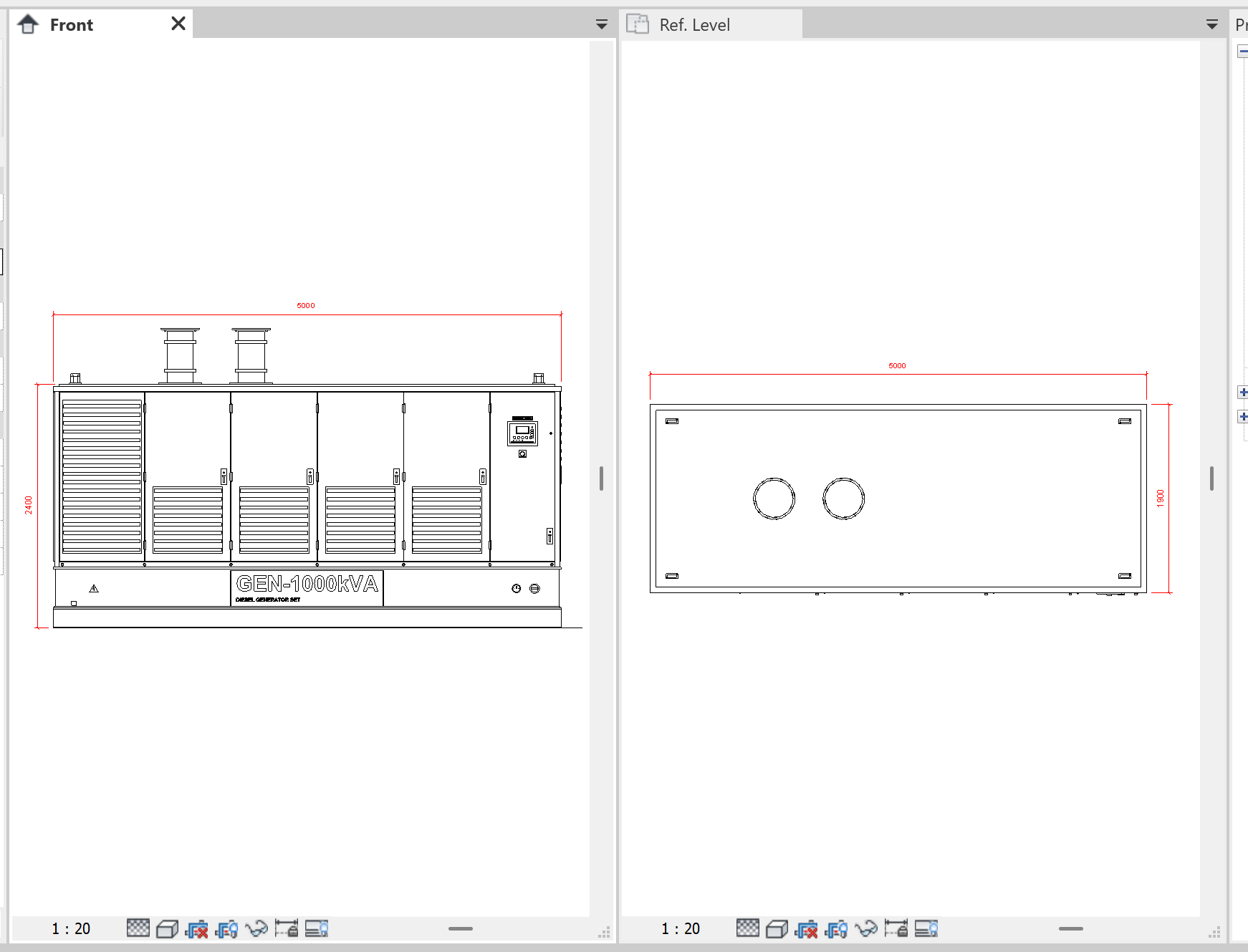

- Default size: 5000 mm long x 1900 mm deep x 2400 mm high
- Flexes cleanly when dimensions change, with no formulas and no broken constraints
- Acoustic enclosure with louvred engine access doors, hinges and handles
- Full radiator grille on the end face
- Alternator access door
- Control panel with genset controller, display, indicator lights and emergency stop
- Twin roof exhaust outlets, plus lifting eyes for crane handling
- Fuel tank base with fuel cap and fuel level gauge
- Heavy-duty steel base frame
- “GEN-1000kVA” identification nameplate on the fuel tank base
- Realistic embedded materials: painted steel enclosure, galvanized steel, stainless steel, chrome, dark grilles, plastic and rubber controls and indicator lenses
- No imported CAD, no external links and no unnecessary parameters
- Category: Electrical Equipment, compatible with Revit 2020 and newer
Ideal for:
Hospitals, data centers, high-rise towers, airports, factories, industrial plants, utilities and large MEP plant rooms.
What you get:
- GEN-1000kVA – Commercial Generator.rfa (Revit 2020)
