GEN-100kVA Commercial Diesel Generator Revit Family – 100 kVA Genset (RFA)
$4.00
A highly detailed, parametric 100 kVA commercial diesel generator Revit family for offices, retail, small commercial and residential buildings. Acoustic enclosure with access doors, controller panel, exhaust outlet and lifting eyes, with simple Width / Depth / Height parameters.
Description
Plan standby power for small and medium buildings with this premium GEN-100kVA Commercial Generator Revit family. Built entirely with native Revit geometry, it looks realistic in 3D and renders and stays clean and readable in plans and elevations.
Key features:
- Simple parametric control: Width, Depth and Height, plus a Power Rating (kVA) value set to 100

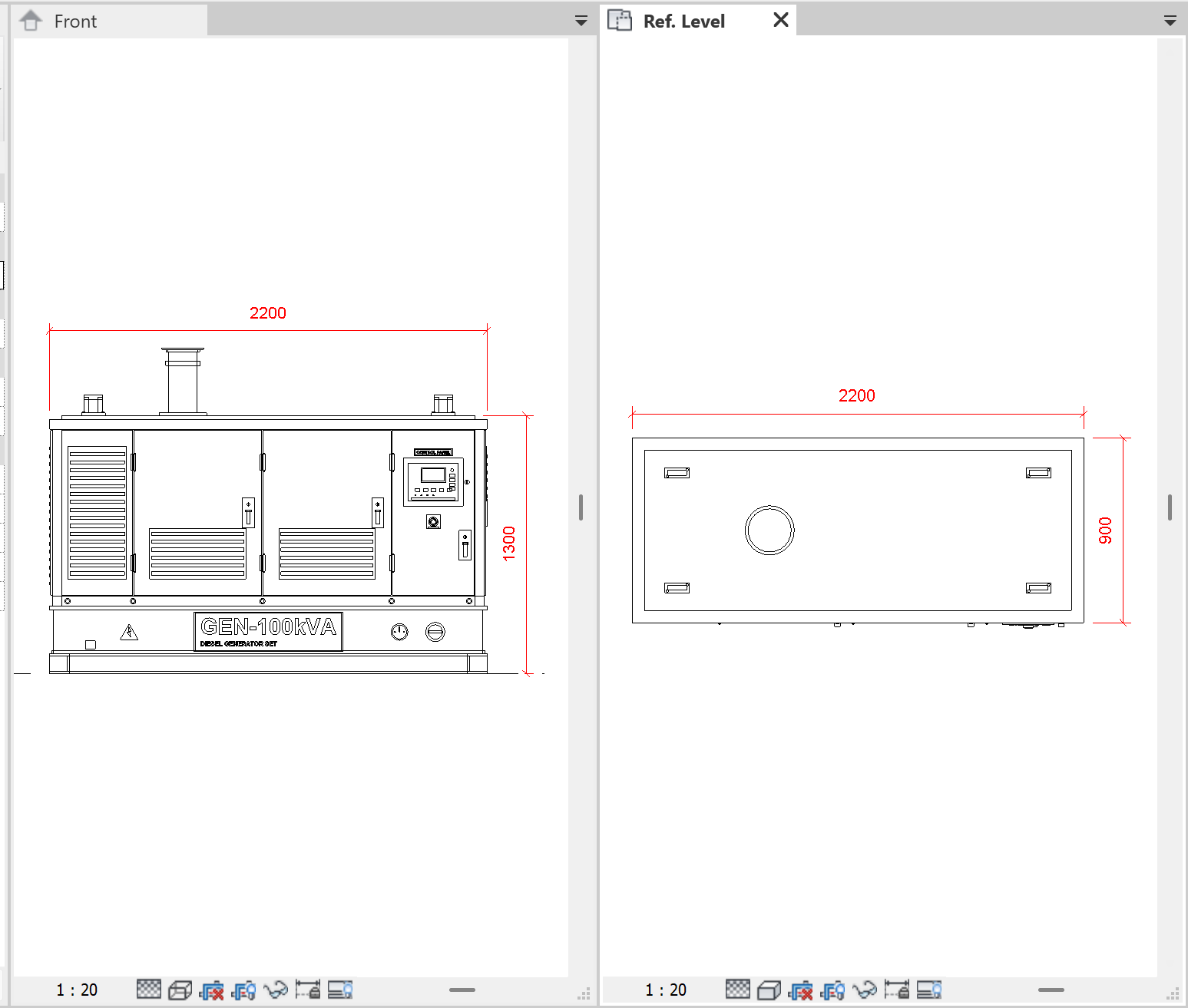

- Default size: 2200 mm long x 900 mm wide x 1300 mm high
- Flexes cleanly when dimensions change, with no formulas and no broken constraints
- Acoustic enclosure with access doors, hinges and handles
- Ventilation louvers for air intake and discharge
- Exhaust outlet and lifting eyes for crane handling
- Generator controller panel with display, emergency stop and indicator lights
- Fuel cap and fuel level gauge
- Heavy base frame
- “GEN-100kVA” identification nameplate
- Realistic embedded materials: painted steel, galvanized steel, stainless steel, chrome, dark plastic and indicator lenses
- No imported CAD, no external links and no unnecessary parameters
- Category: Electrical Equipment, compatible with Revit 2020 and newer
Ideal for:
Offices, shops, clinics, schools, villas and residential buildings, small hotels, telecom sites and MEP plant rooms.
What you get:
- GEN-100kVA – Commercial Generator.rfa (Revit 2020)
