Pedestal EV Charger Revit Family – Freestanding Charging Station (RFA)
$4.00
A highly detailed, parametric freestanding pedestal EV charger Revit family for parking areas, commercial buildings, offices and public facilities. Native geometry with a realistic curved charging cable, connector and holster, plus simple Width / Depth / Height parameters.
Description
Add realistic electric vehicle charging points to your BIM projects with this premium Pedestal EV Charger Revit family. Built entirely with native Revit geometry, it looks professional in 3D, plan and elevation and is light enough for large parking layouts.
Key features:
- Fully parametric with only three parameters: Width, Depth and Height

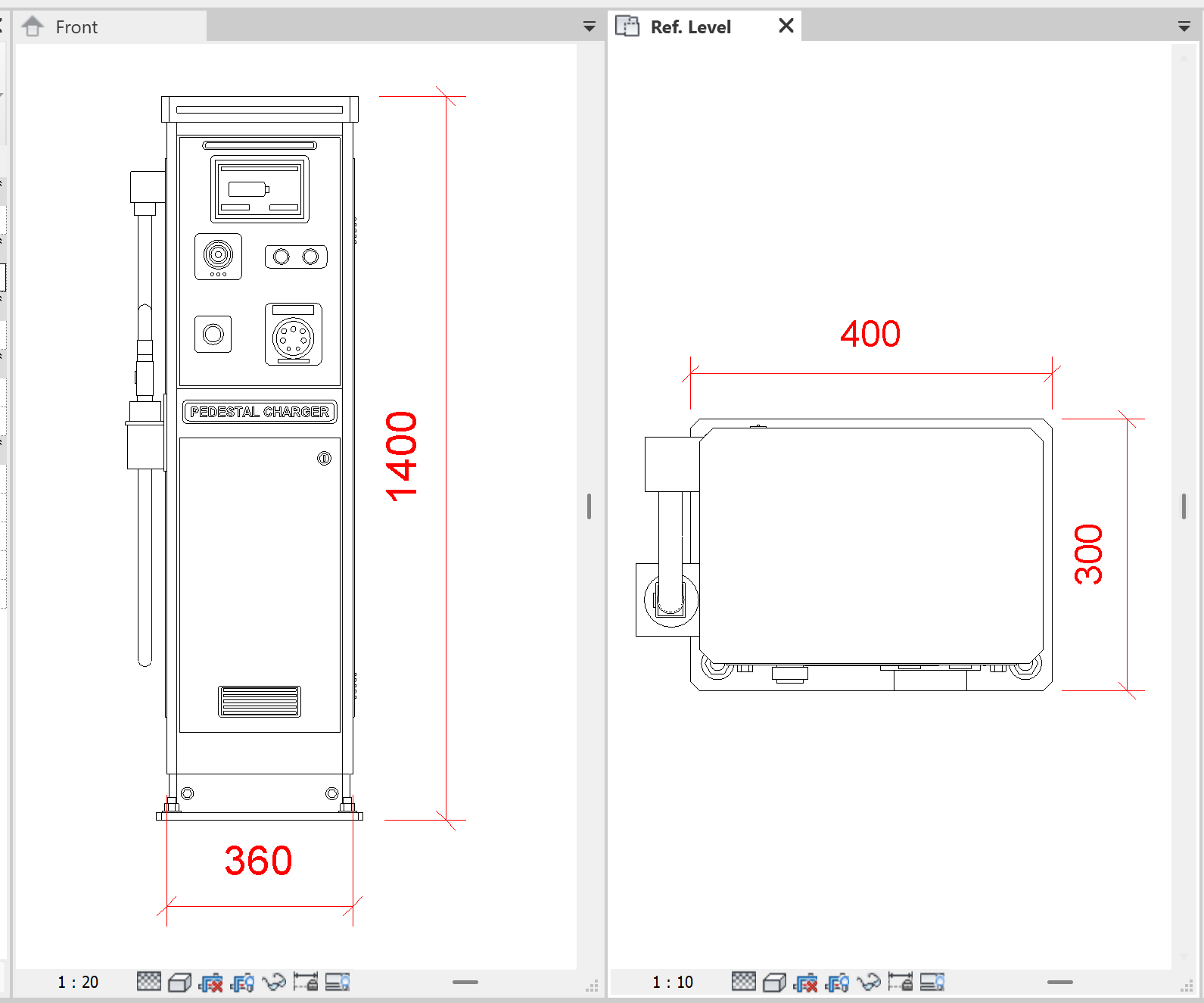

- Default size: 400 mm wide x 300 mm deep x 1400 mm high
- Flexes cleanly when each dimension is changed, with no broken constraints or warnings
- Pedestal body with chamfered (beveled) edges and a dark top cap with an LED status strip
- Charging unit fascia with colour display screen, green charging status light bar, RFID card reader, start/stop buttons and emergency stop
- Type 2 charging socket with protective flap
- Realistic curved charging cable with connector/plug, strain relief and side-mounted cable holder (holster)
- Front and rear access/service panels with key locks and ventilation grilles
- Green side accent light strips and side ventilation
- Galvanized base plate with anchor bolts, plinth and fixing bolts
- “PEDESTAL CHARGER” identification nameplate
- Realistic embedded materials: painted metal, galvanized steel, chrome, dark plastic, rubber and display glass
- No imported CAD, no external links and no unnecessary parameters
- Category: Specialty Equipment, compatible with Revit 2020 and newer
Ideal for:
Car parks, commercial and office buildings, shopping centres, hotels, residential developments, fleet depots and public charging stations.
