Description

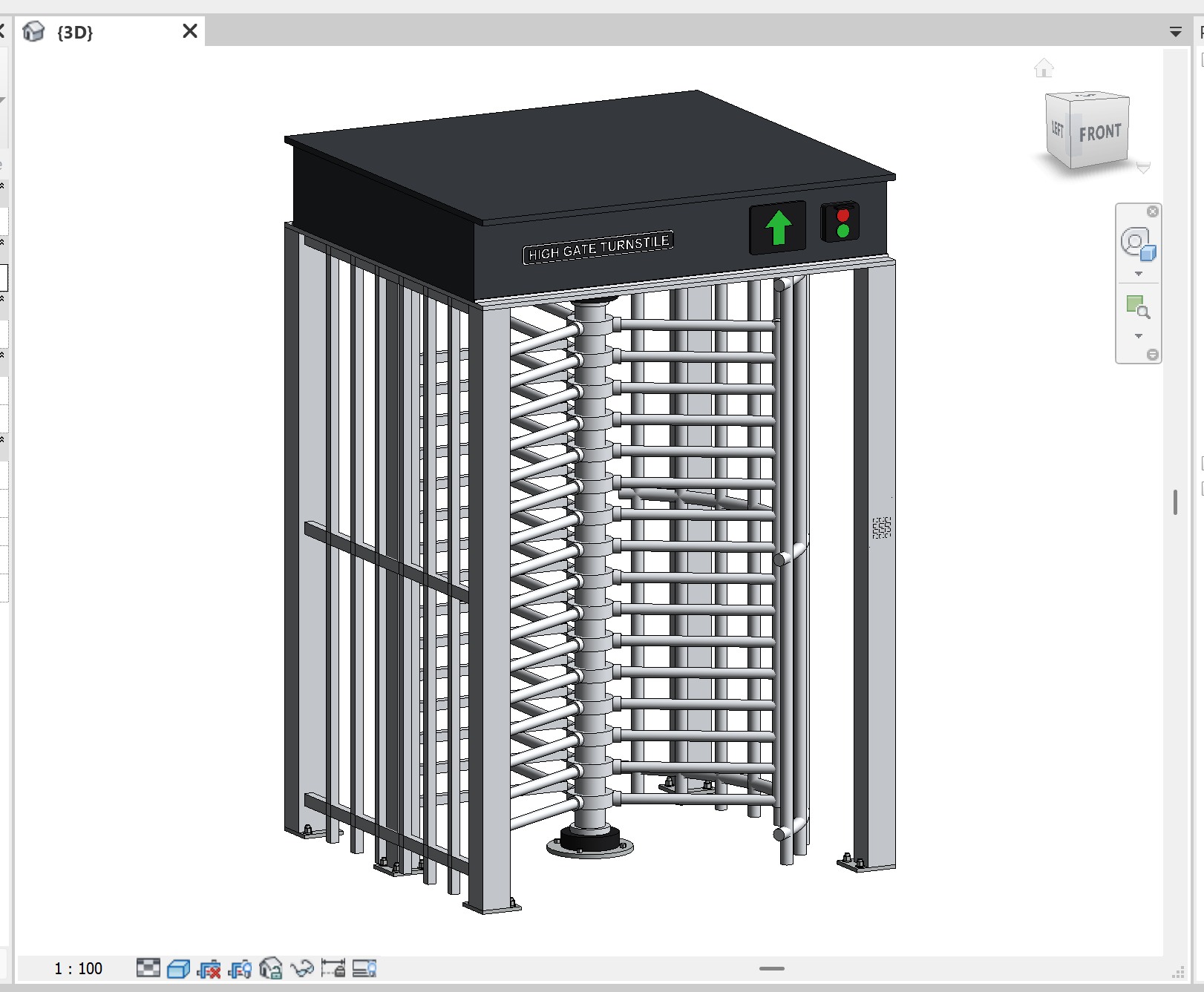

Design controlled-access entrances with confidence using this premium High Gate (full-height) Turnstile Revit family. Built entirely with native Revit geometry, it reads clearly in plans and elevations and looks realistic in 3D views and renders.

Key features:

• Fully parametric with only three parameters: Width, Depth and Height

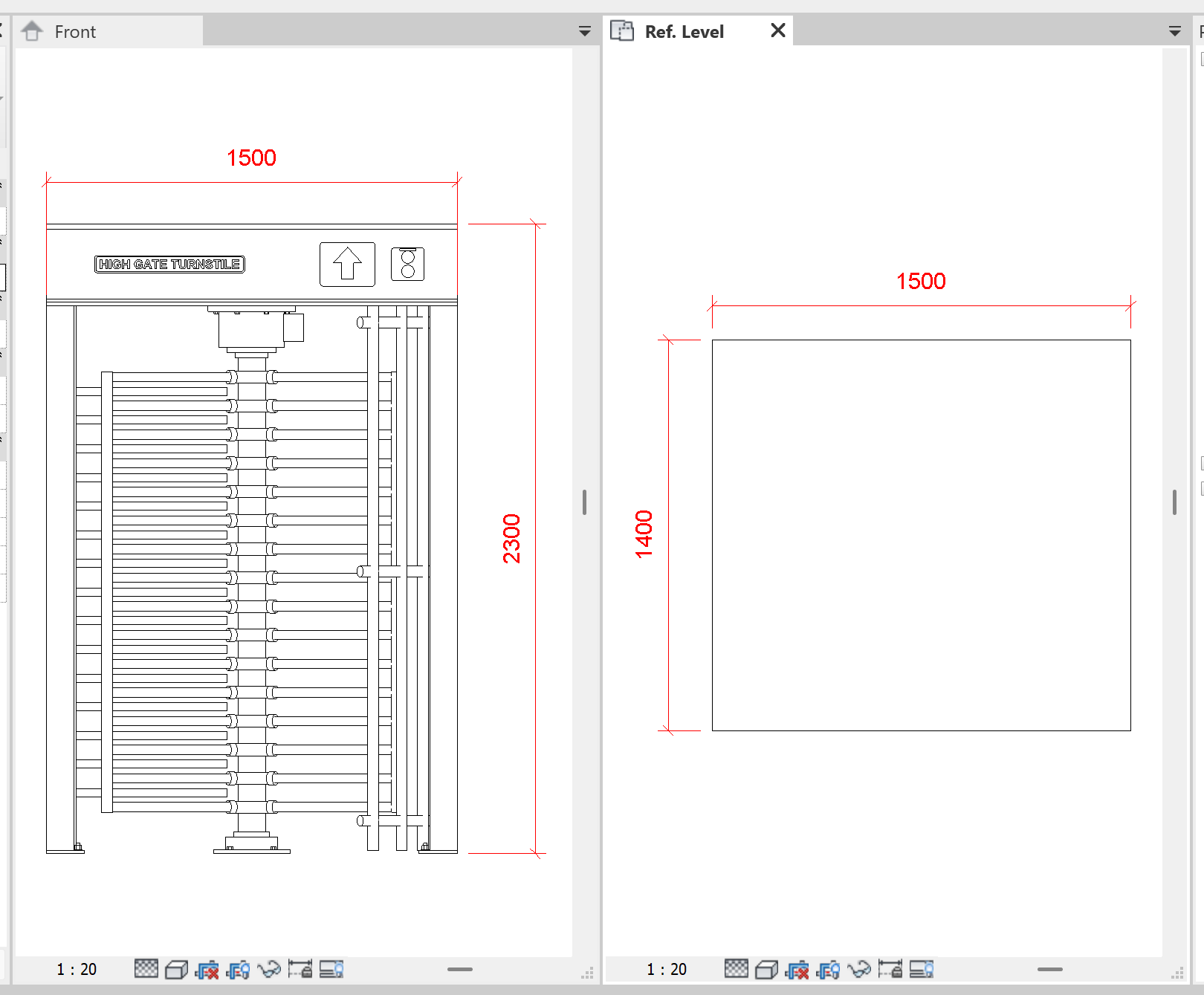

• Default size: 1500 mm wide x 1400 mm deep x 2300 mm high
• Flexes cleanly when each dimension is changed, with no broken constraints or warnings
• Central rotating vertical shaft with floor bearing and top drive housing
• Three-wing rotor with 16 levels of stainless steel barrier arms and welded collars
• Fixed comb barrier interleaved with the rotor arms, showing exactly how the turnstile operates
• Curved stainless steel cage on the passage side with top, middle and bottom rails
• Fixed side barrier wall with vertical bars and horizontal rails
• Four structural corner posts on bolted floor mounting plates with anchor bolts
• Top mechanical housing with chrome trims
• Access control reader with keypad and display at the entry, proximity card reader at the exit
• Red/green status lights, a green direction arrow on the entry side and a red no-entry cross on the exit side
• “HIGH GATE TURNSTILE” identification sign on both faces
• Realistic embedded materials: stainless steel, painted metal, galvanized steel, dark plastic and indicator lenses
• No imported CAD, no external links and no unnecessary parameters
• Category: Specialty Equipment, compatible with Revit 2020 and newer

Ideal for:
Security entrances, industrial facilities, stadiums, data centers, factories, construction sites, transport hubs and other controlled-access buildings.
